Diy 14 x 24 gable pavilion plans in pdf. Carport plans pdf. Wooden outdoor gazebo plans pdf. Diy backyard pergola plans for outdoor.

Measurements are in imperial

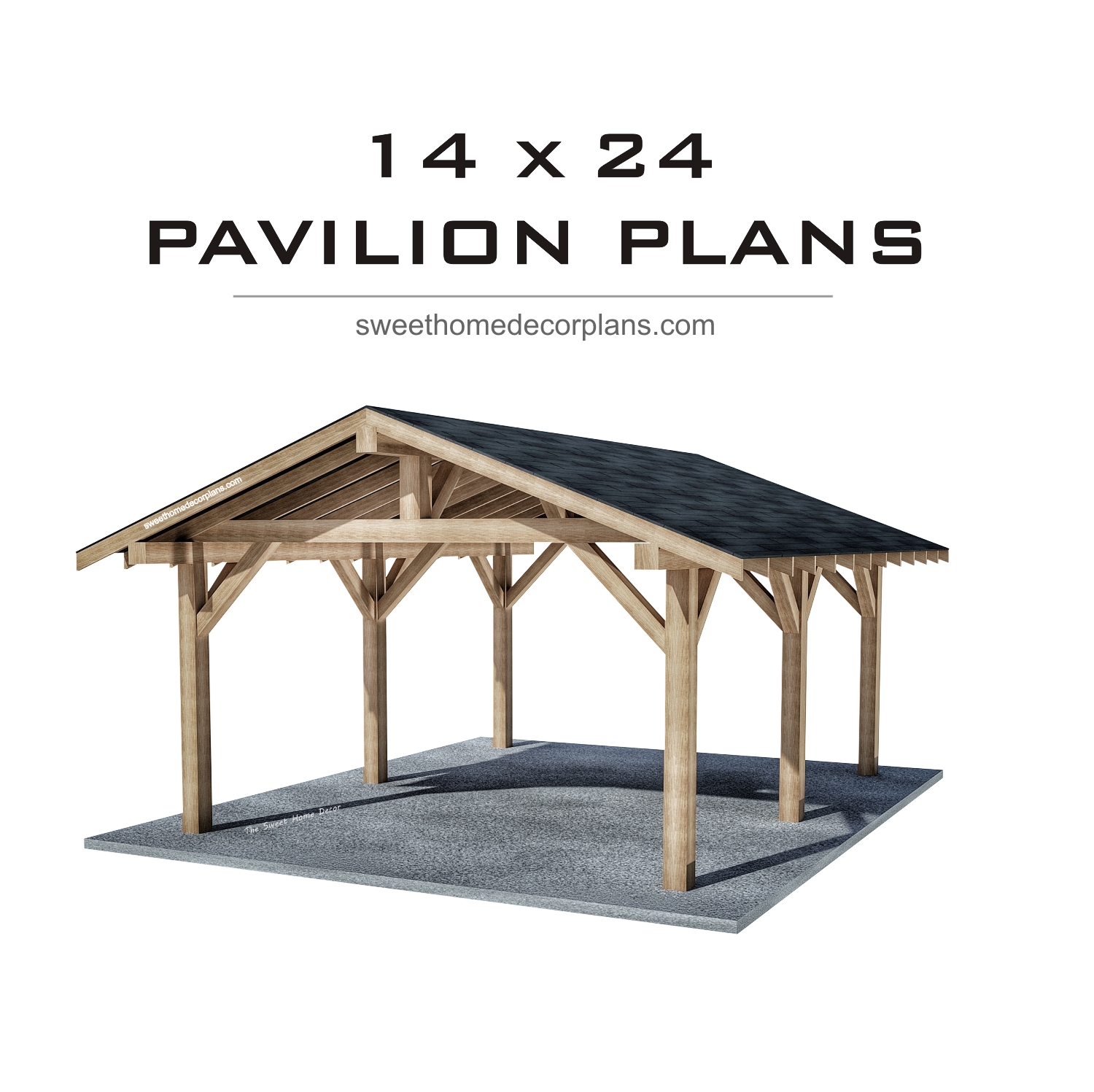

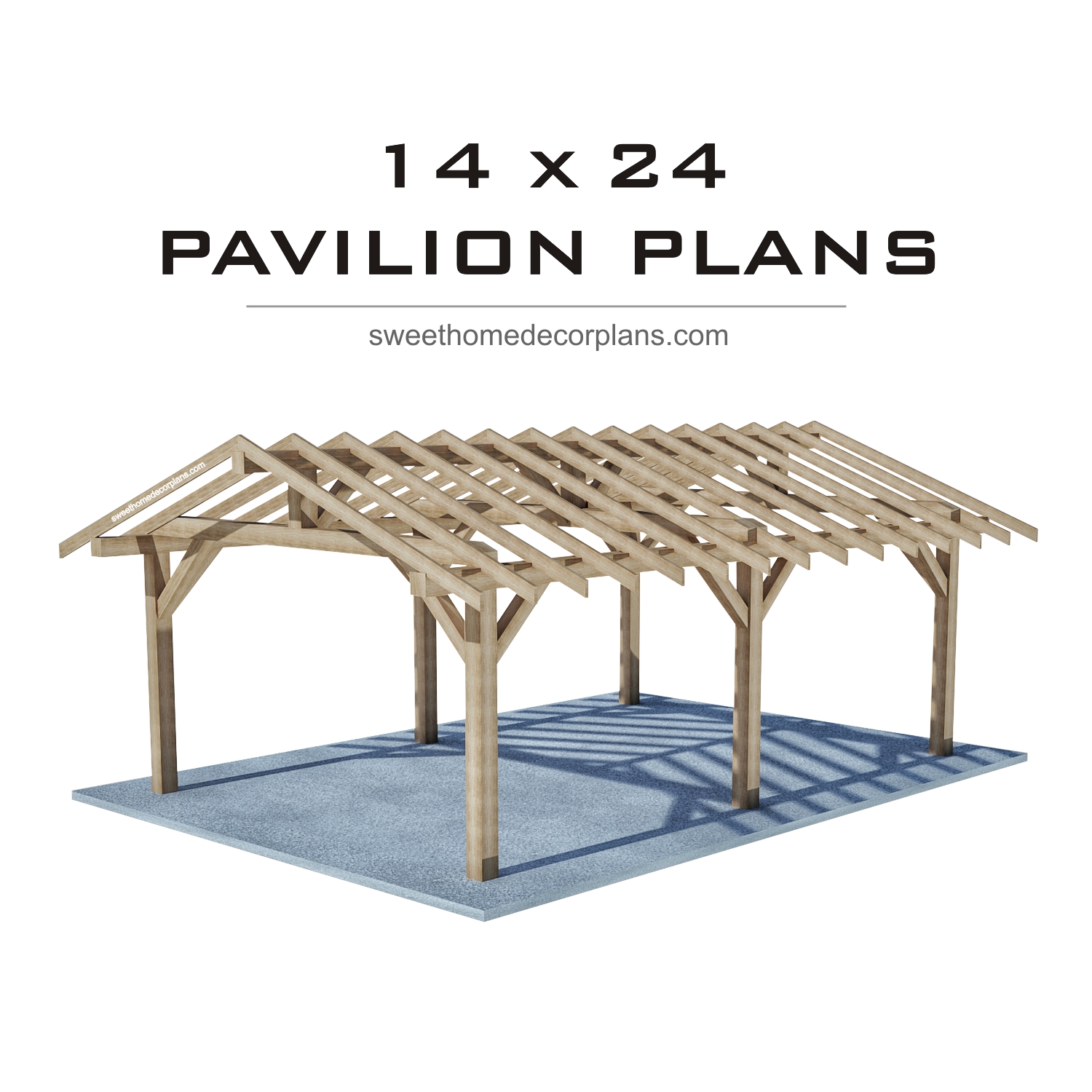

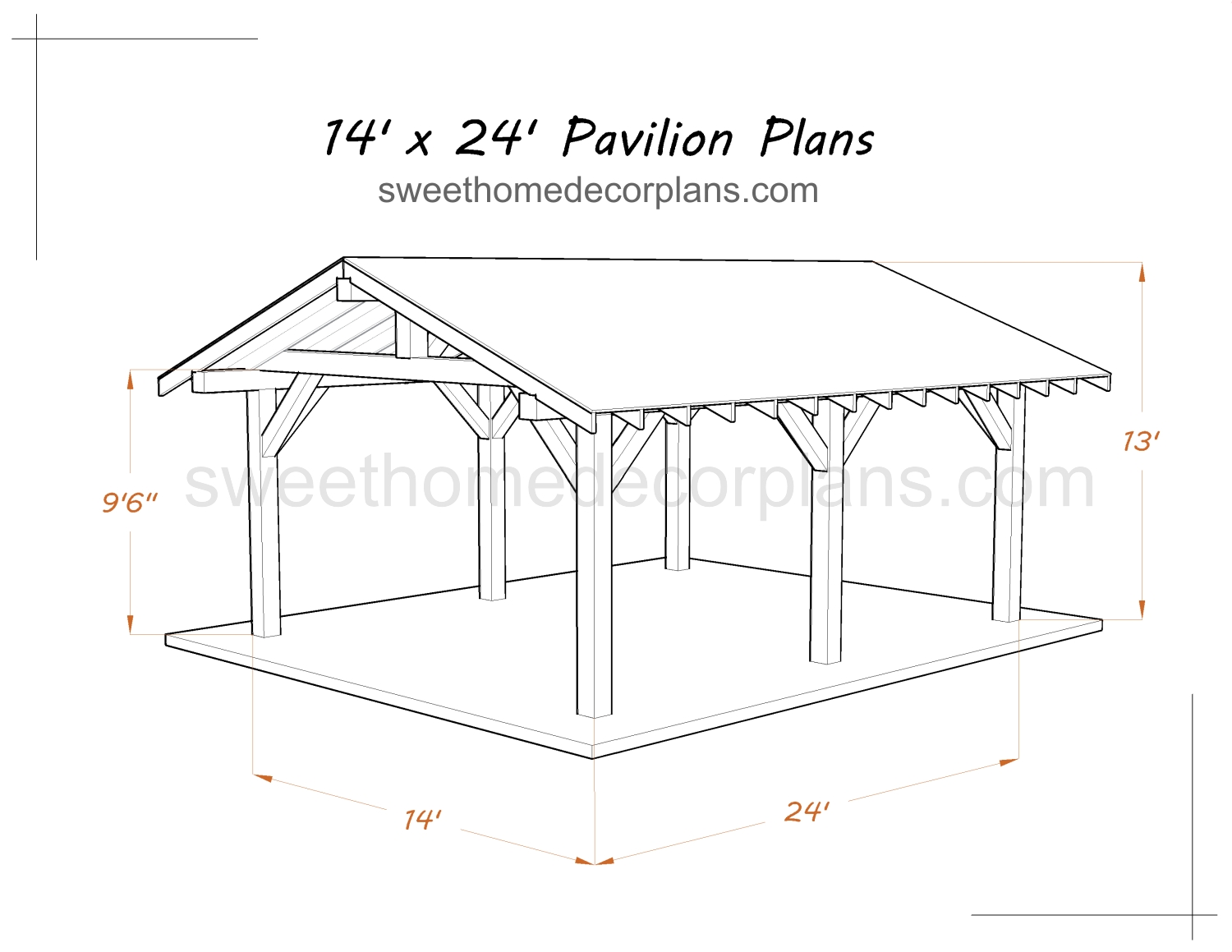

You can build 14′ x 24′ x 13′ pavilion. The dimensions in plans are 14′ x 24′ between the post. The roof size will be 18′ x 28′. Roof overhang 2′ on each side. Fastening the structure by burying wooden supports into the ground.
With plans, you save your time and effort. This project requires basic woodworking skills.

Plans includes:

– List of tools
– List of material
– Cutting and drilling diagram

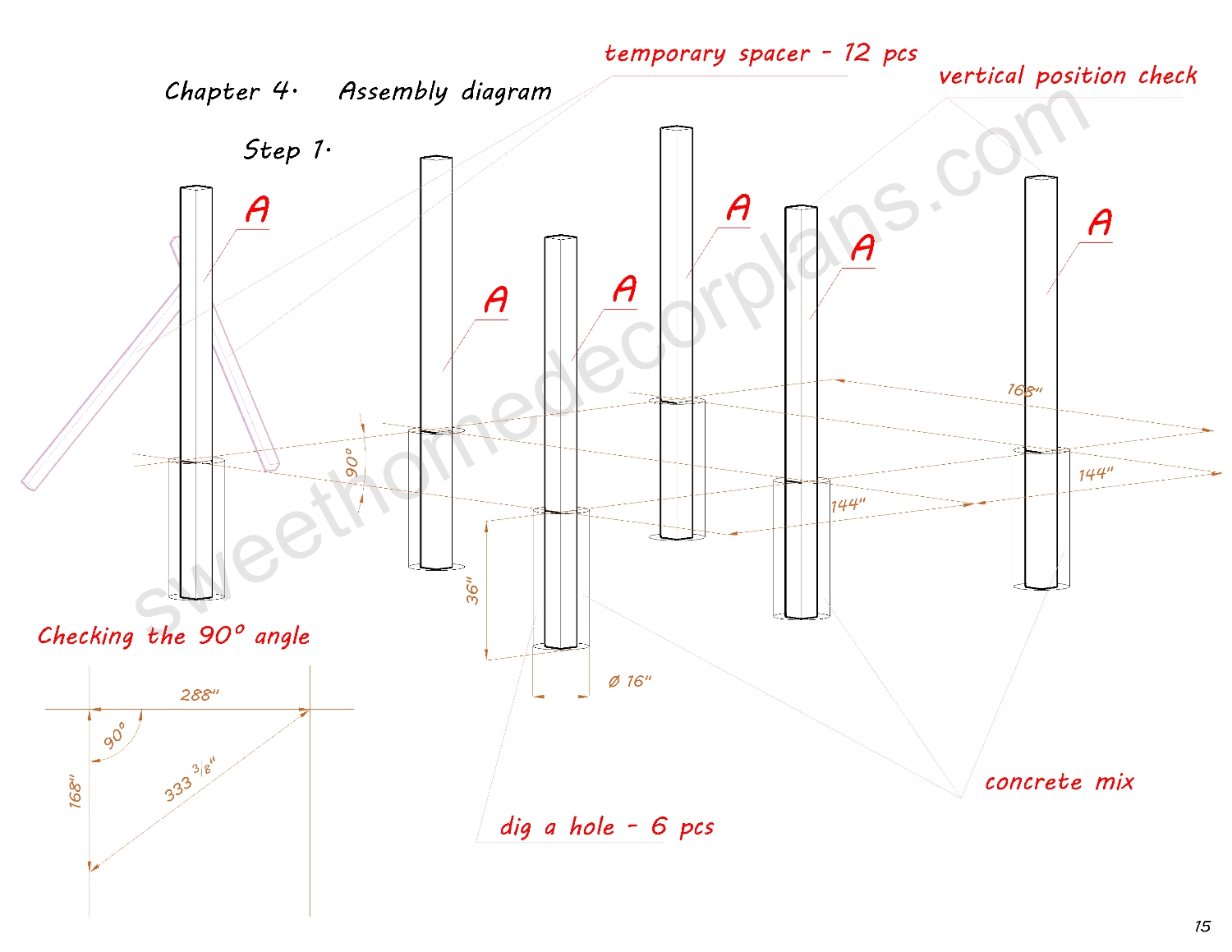

– Assembly diagram. Step-by-step Instructions

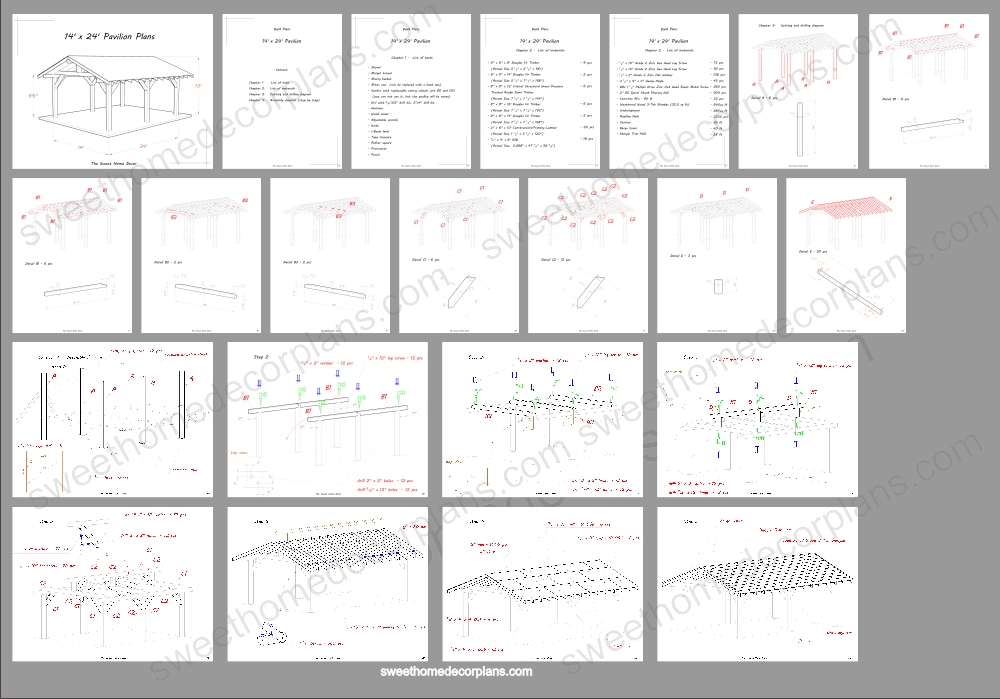

Below are the random sheets from the 14 x 24 pavilion plans. This is an introductory (cut down) version of the plans.

All sheets are presented in the premium version of the plans in pdf at the official store on Inspire Uplift.
