Diy 16 x 12 gable pavilion plans in pdf. Carport plans pdf. Wooden outdoor gazebo plans. Diy backyard wooden pavilion plans  for outdoor.

Measurements are in imperial

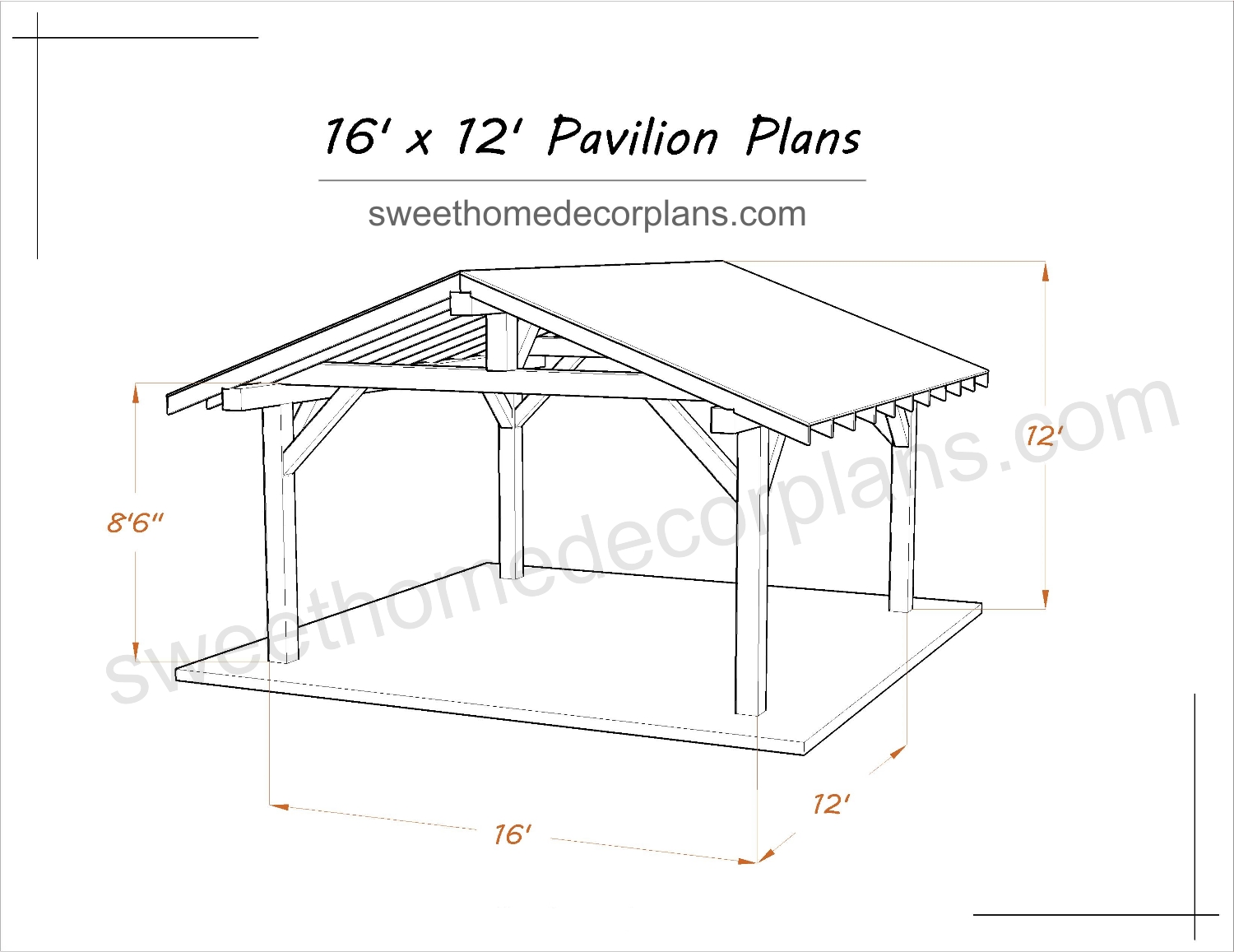

You can build 16′ x 12′ x 12′ pavilion. The dimensions in plans are 16’x 12′ between the post. The roof size will be 20′ x 16′. Roof overhang 2′ on each side. Fastening the structure by burying wooden supports into the ground.
With plans, you save your time and effort. This project requires basic woodworking skills.

Plans includes:

– List of tools
– List of material

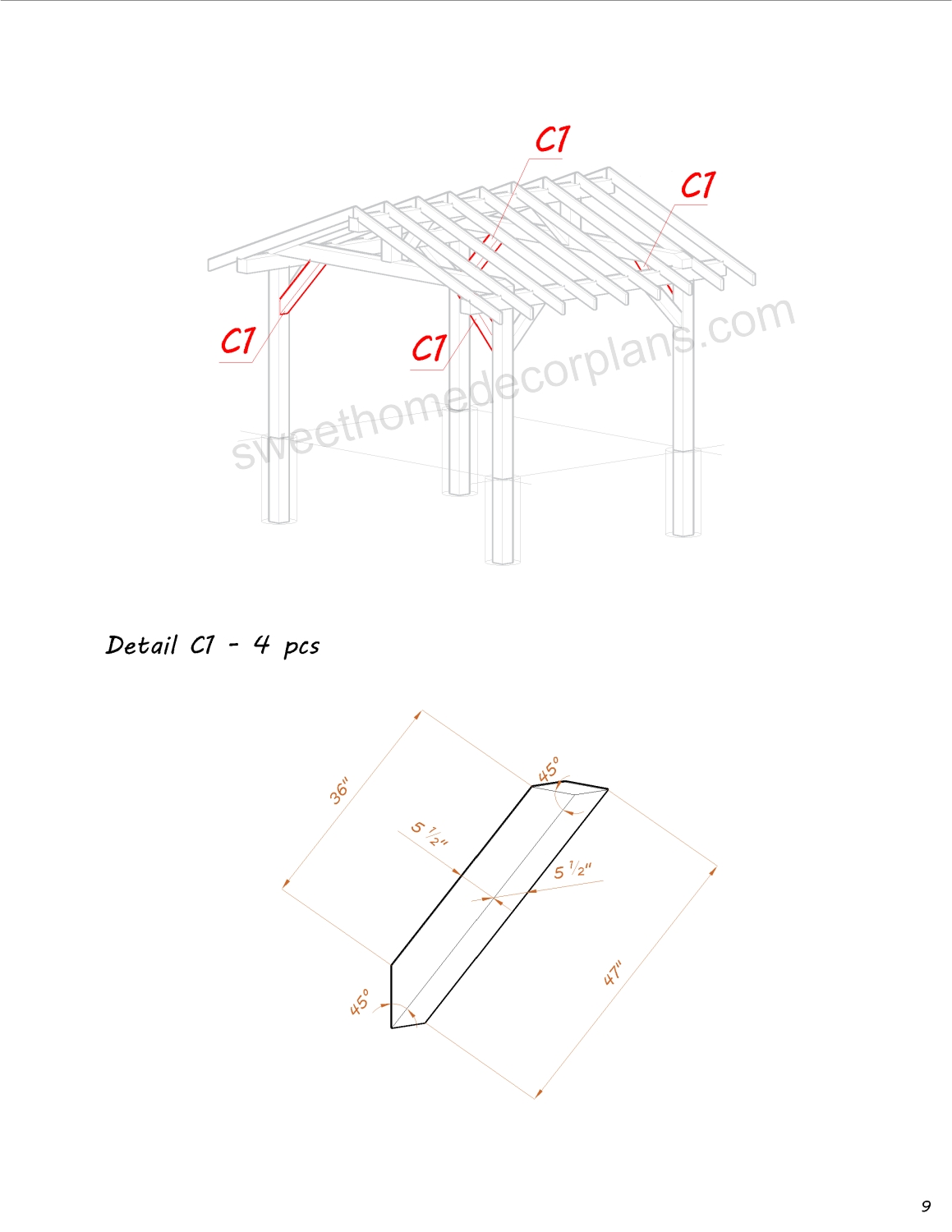

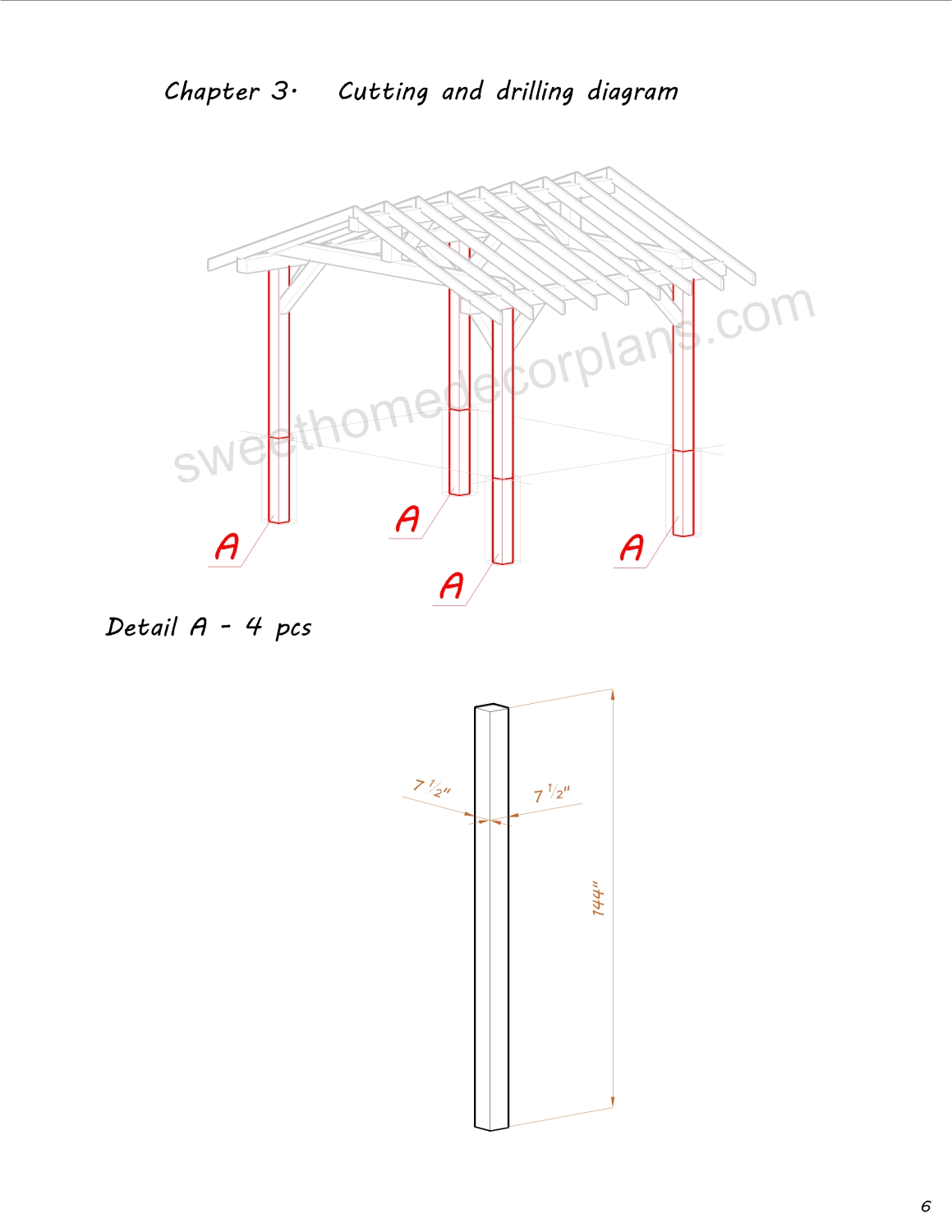

– Cutting and drilling diagram

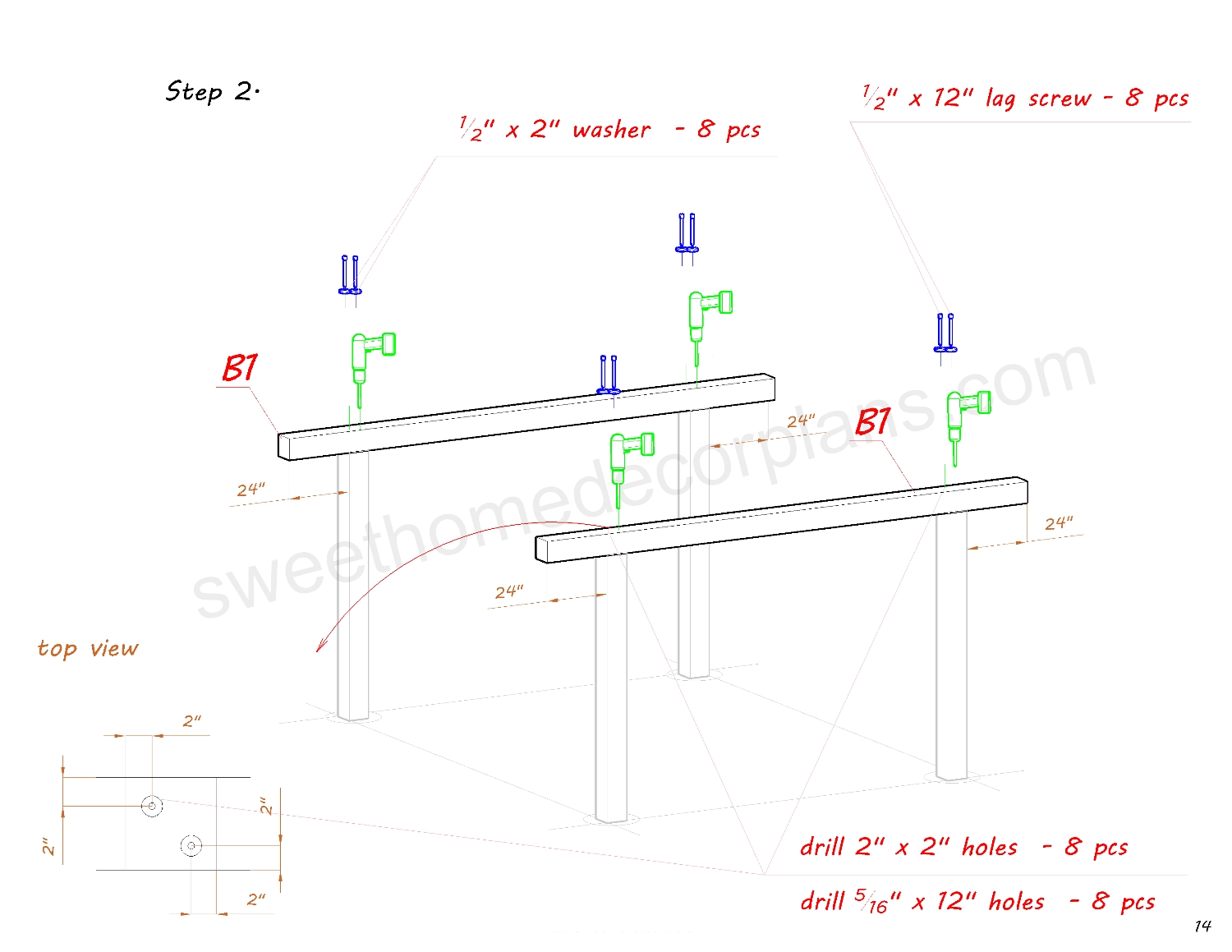

– Assembly diagram. Step-by-step Instructions

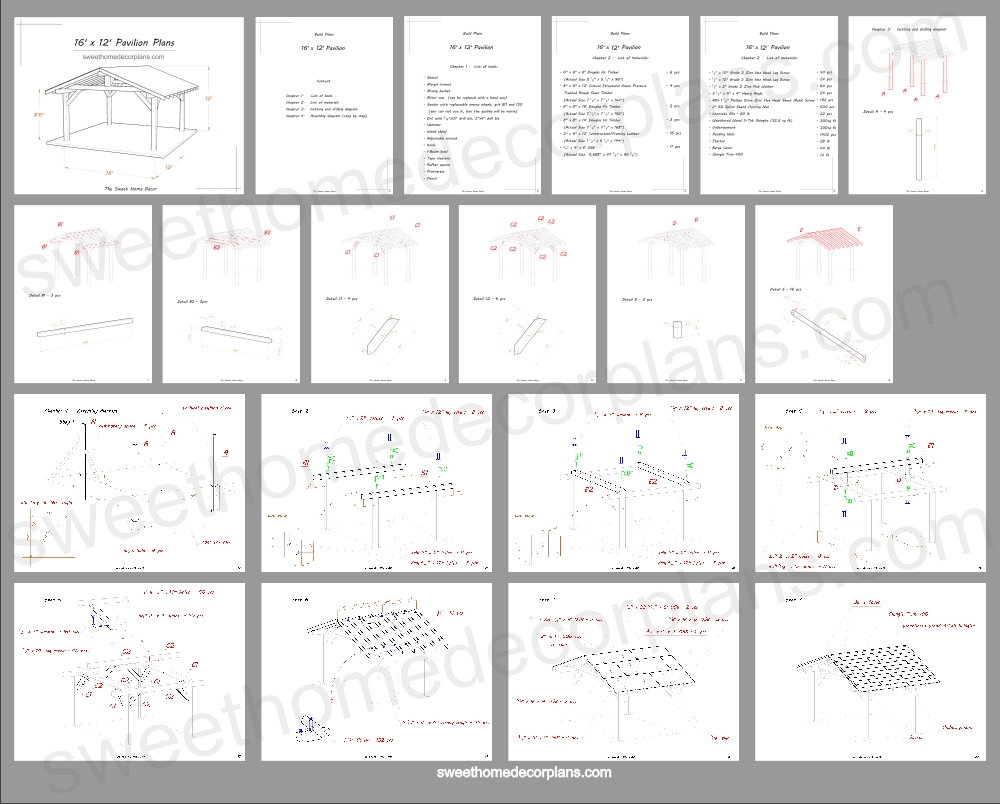

Below are the random sheets from the 16 x 12 pavilion plans. This is an introductory (cut down) version of the plans.

All sheets are presented in the premium version of the plans in pdf at the official store on Inspire Uplift.
