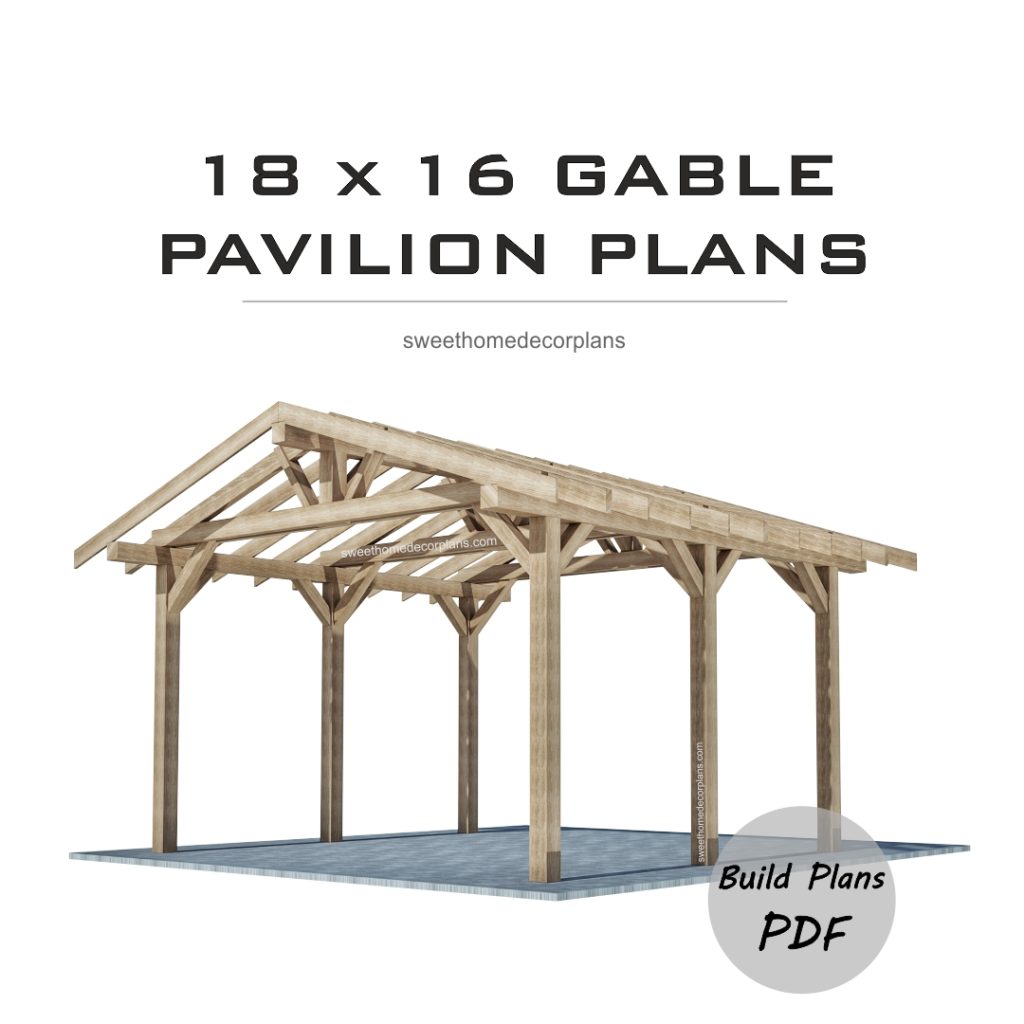

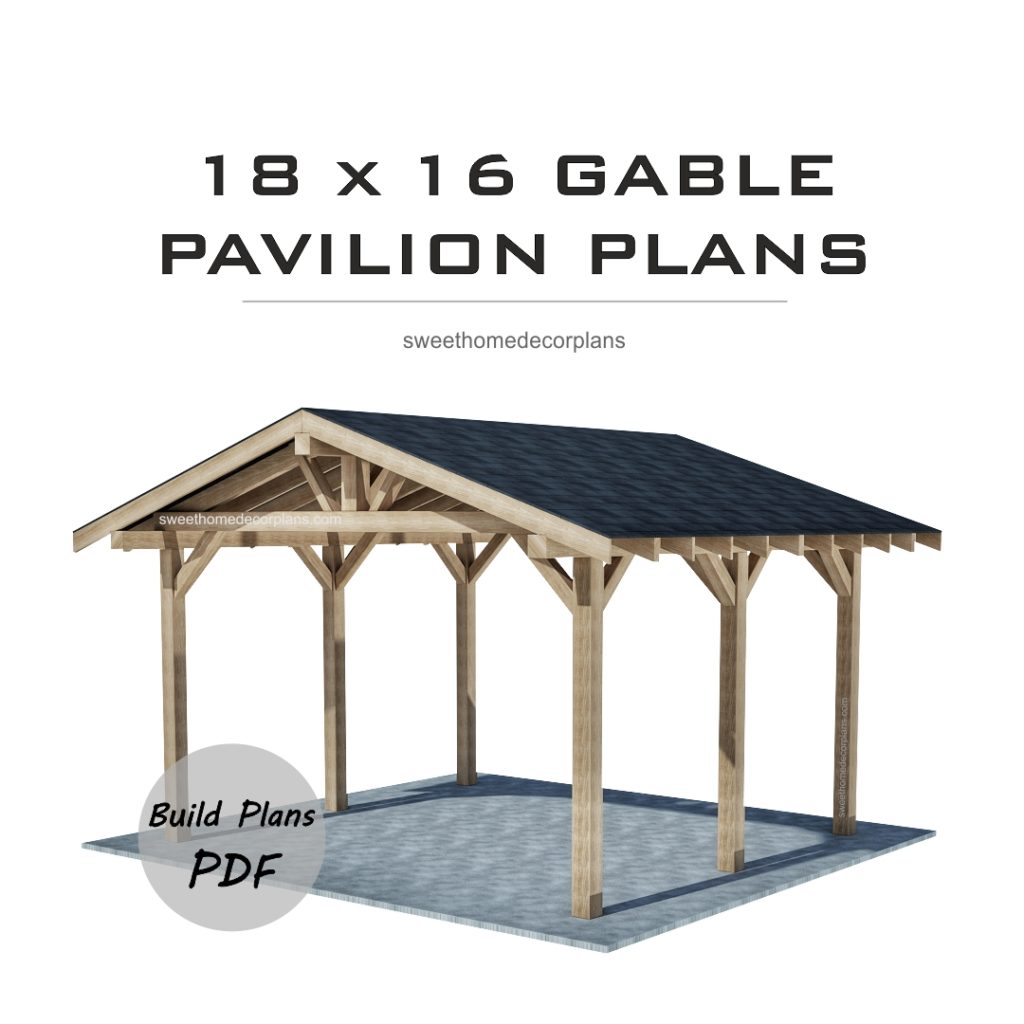

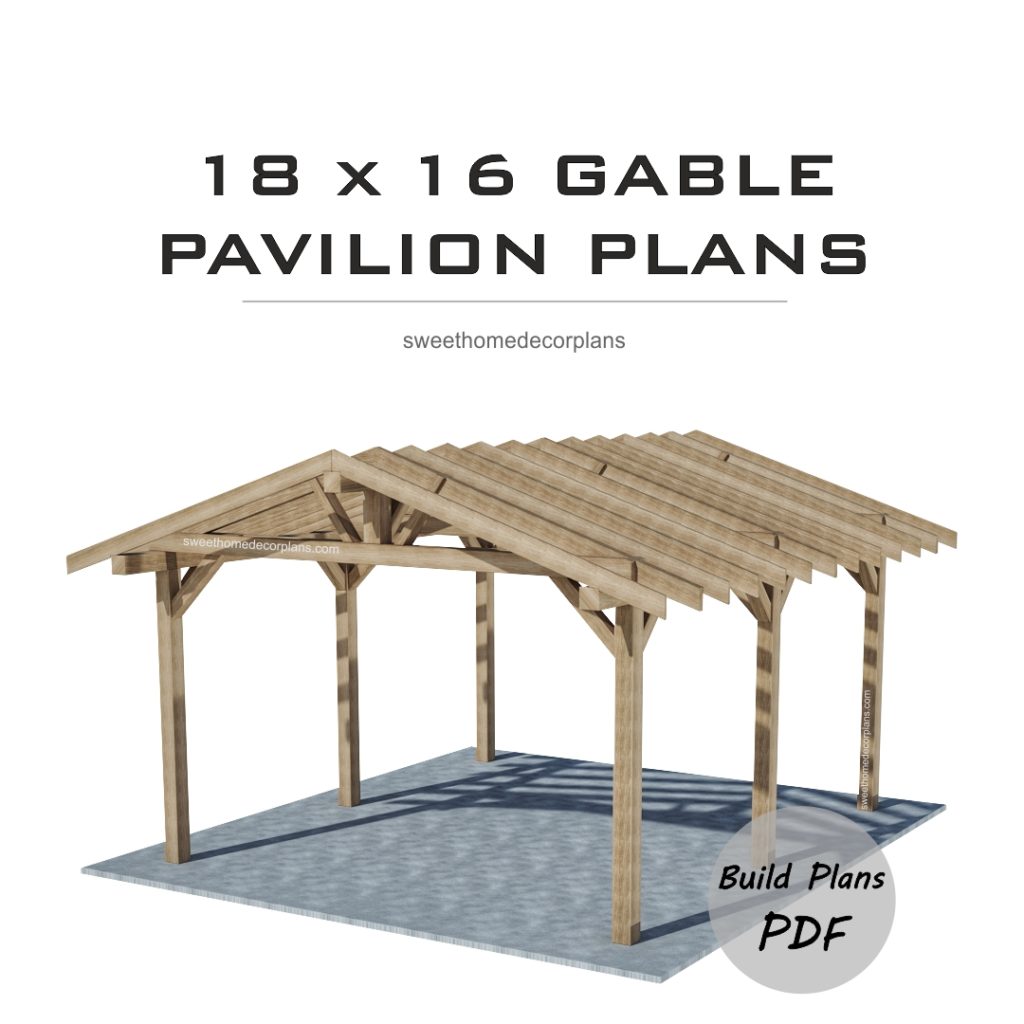

DIY 18 x 16 gable pavilion plans. Covered carport plans. Wooden gazebo plans. Timber frame backyard open garage plans in PDF.

Measurements are in imperial

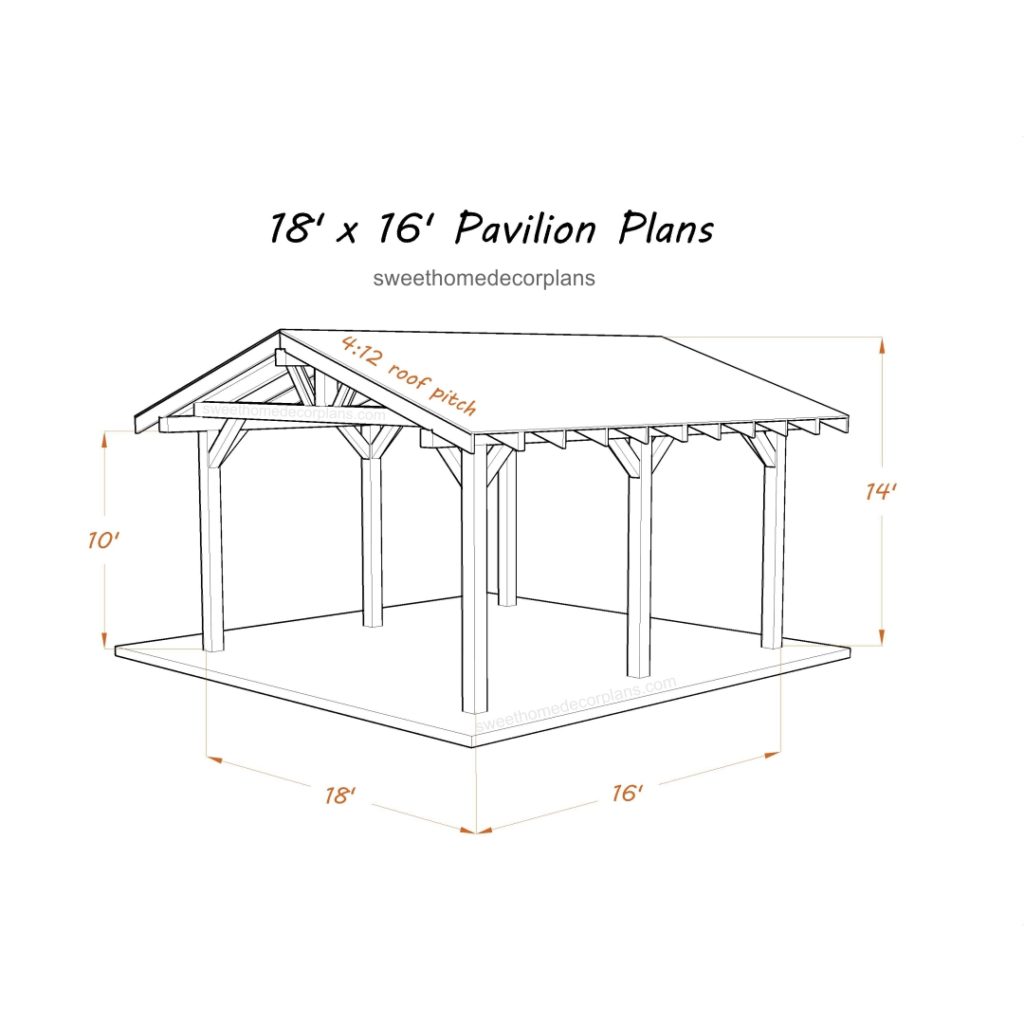

You can build 18 x 16 gable pavilion. Roof size 22′ x 20′. Roof overhangs 2′ on each side. Fastening the structure by burying wooden supports into the ground.
With plans, you save your time and effort. This project requires basic woodworking skills.

Measurements are in imperial

Plans includes:

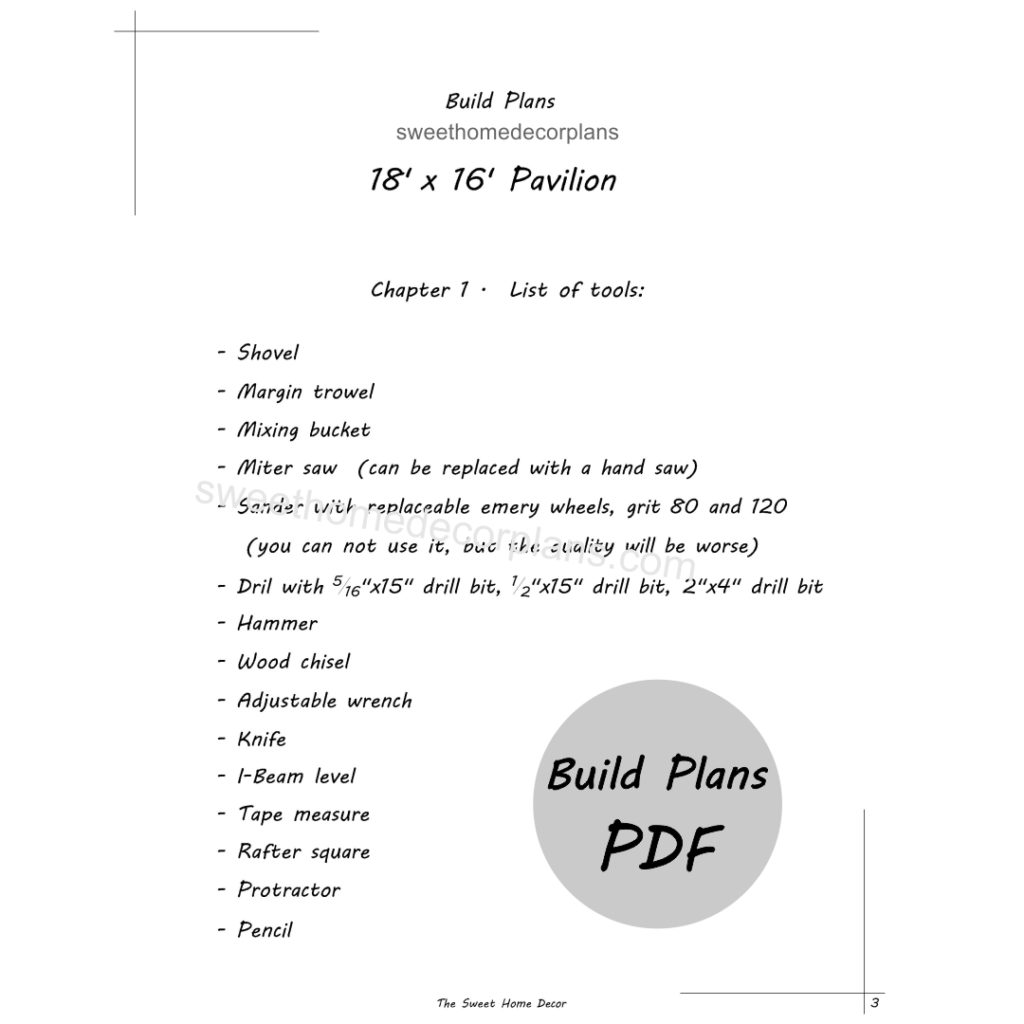

– List of tools
– List of material

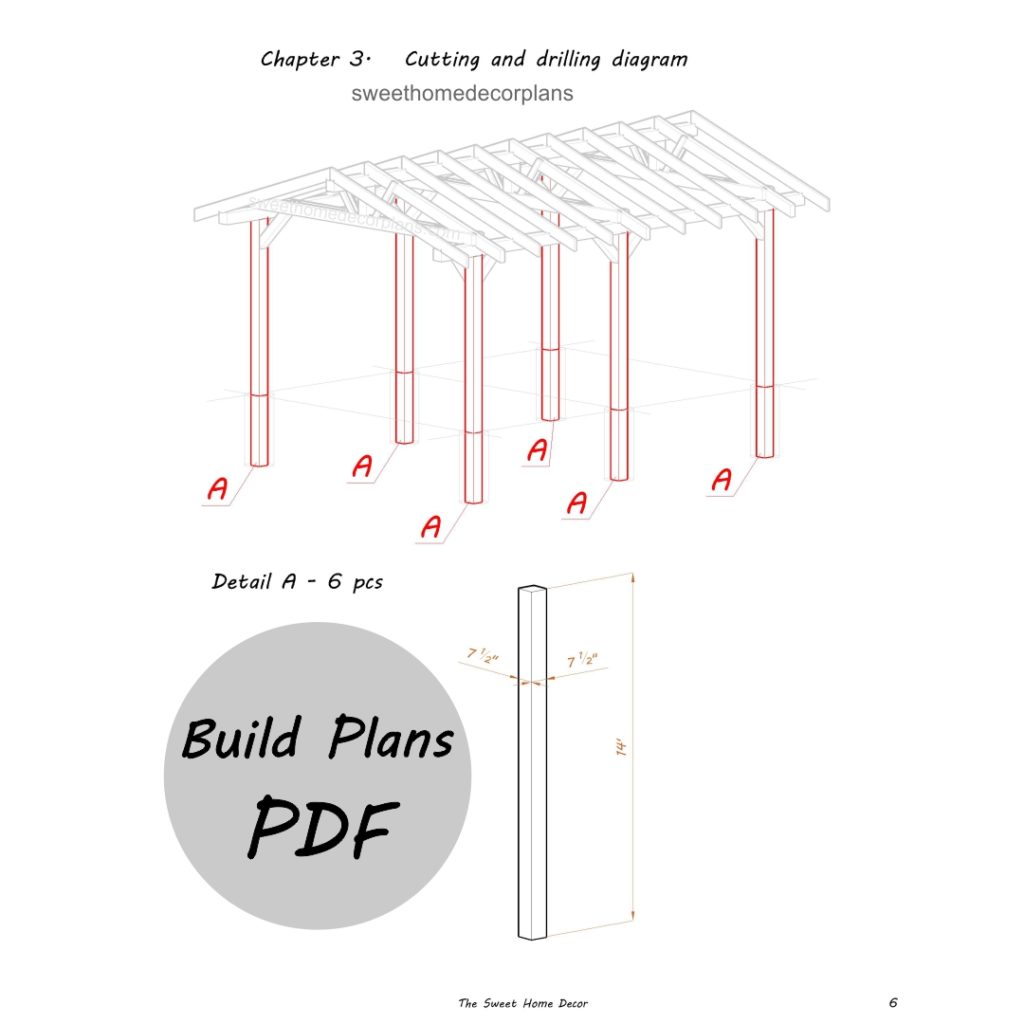

– Cutting and drilling diagram
– Assembly diagram. Step-by-step Instructions

Below are the random sheets from the 18 x 16 pavilion plans. This is an introductory (cut down) version of the plans.

All sheets are presented in the premium version of the plans in pdf at the official store on ballwool.com
